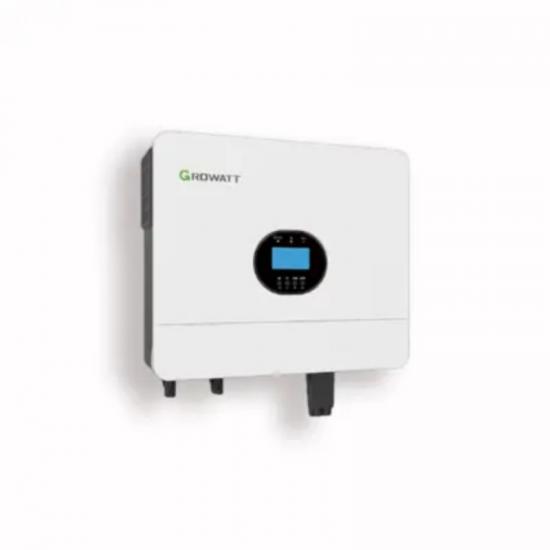

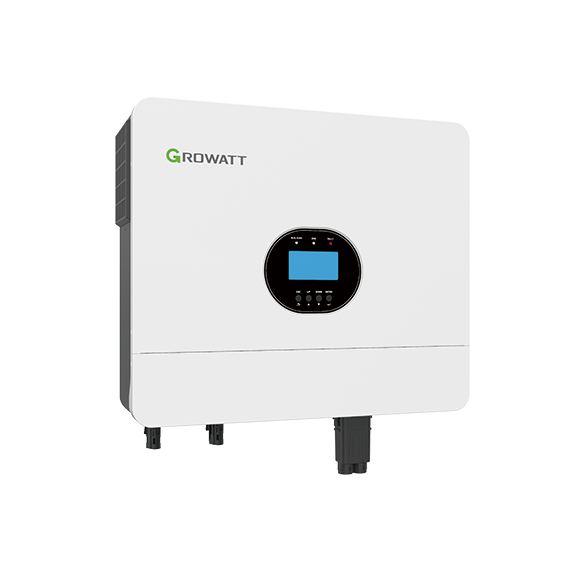

OFF-GRID INVERTER GROWATT SPF 6000 ES PLUS 1 PHASE
OFF-GRID INVERTER GROWATT SPF 6000 ES
Growatt SPF 6000 ES PLUS (Solar Power Frequency) is a type of hybrid solar inverter designed for use in residential and commercial solar power systems. It is a combination of an inverter, a battery charger, and a transfer switch that manages the flow of energy between solar panels, batteries, and the electrical grid. The Growatt SPF inverter is known for its high efficiency, reliability, and flexibility. It can work with both on-grid and off-grid solar systems, and can be used for backup power during power outages. It also has a range of features, such as a built-in MPPT charge controller, LCD display, and remote monitoring capabilities through a mobile app.
One-phase off-grid inverter designed for residential and small industrial applications. Available capacities: 6kW, 18kW(three phase), 36kW (three phase). Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and GPRS.
GENERAL INFORMATION
- DC/AC ratio up to 1.2
- 2 times peak power ability
- Output power factor up to 1.0
- Up to 6 units in parallel for capacity extension
- Multi-customized modes for diverse scenarios
- Compatible with lithium, lead-acid and GEL batteries
- Support WiFi and GPRS remote monitoring
- PVkeeper platform for local commissioning
- Timing charging and output control
- Growatt comprehensive warranty plan
- 2 year warranty

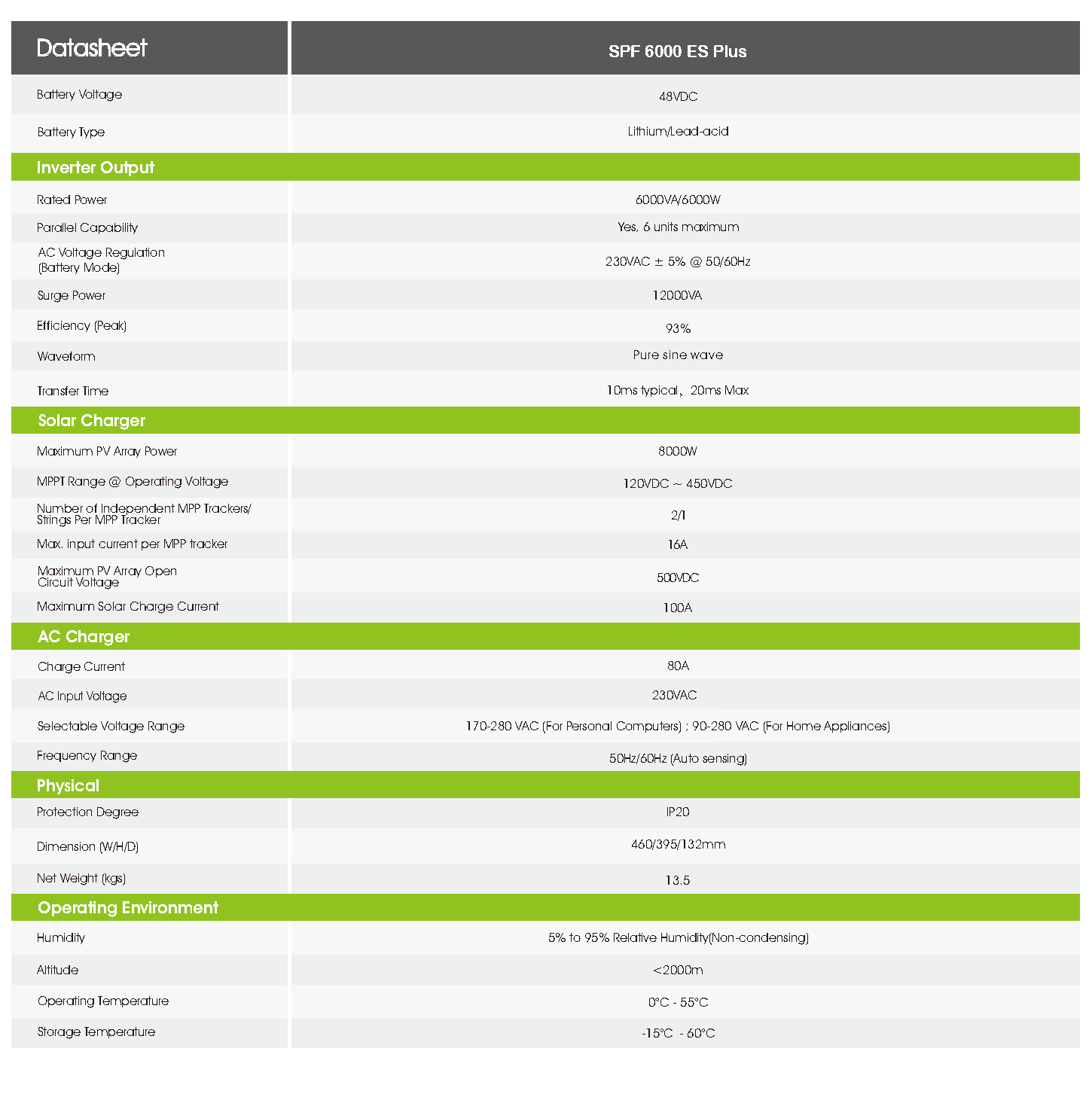

Basic specifications of hybrid inverter Growatt SPF 6000 ES PLUS:
- Rated power [W] : 6000
- Battery Voltage [VDC]: 48
- Max. PV Array Power [W] : 8000
- MPPT Range Operating Voltage – 120VDC – 460VDC
- Number of Independent MPP Trackers/ Strings Per MPP Tracker : 2/1
- Parallel Capability: Up to 6 units
- Charge Current [A] : 100
- Dimensions (W / H / D) [mm] : 330/485/135
- Weight [kg] : 11,5
- MAX. efficiency [%] : 93
- Protection degree: IP20
